Trinity B Series 12" Subwoofer 1,500 Watts RMS
Trinity B Series 12" Subwoofer 1,500 Watts RMS - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Experience the Power of the Trinity B Series 12'' Subwoofer!
The Trinity B Series 12'' Subwoofer is expertly crafted to deliver an exceptional bass experience for both novice and seasoned bass enthusiasts. Drawing on the expertise of the M and H series, the B series subwoofers are designed to provide substantial bass performance in a versatile and accessible package. This subwoofer is perfect for those seeking high-quality sound without the need for extensive electrical modifications or high-end amplifiers.
The Trinity B Series 12'' Subwoofer features a robust cast basket and Trinity Audio Solutions' signature all-black sleek design, ensuring durability and aesthetic appeal. Equipped with a 3" high-temperature dual voice coil, it handles up to 1,500 watts RMS, delivering deep, impactful bass with unmatched clarity and precision.
One of the standout features of the Trinity B Series 12'' Subwoofer is its high excursion capability. With 10" spiders, this design allows for greater cone movement, producing dynamic and powerful bass output. The double-stacked motor design, enhanced by Finite Element Analysis (FEA) cooling, ensures the subwoofer remains cool and efficient even during extended use. Advanced cooling mechanisms further enhance reliability, preventing overheating in demanding conditions.

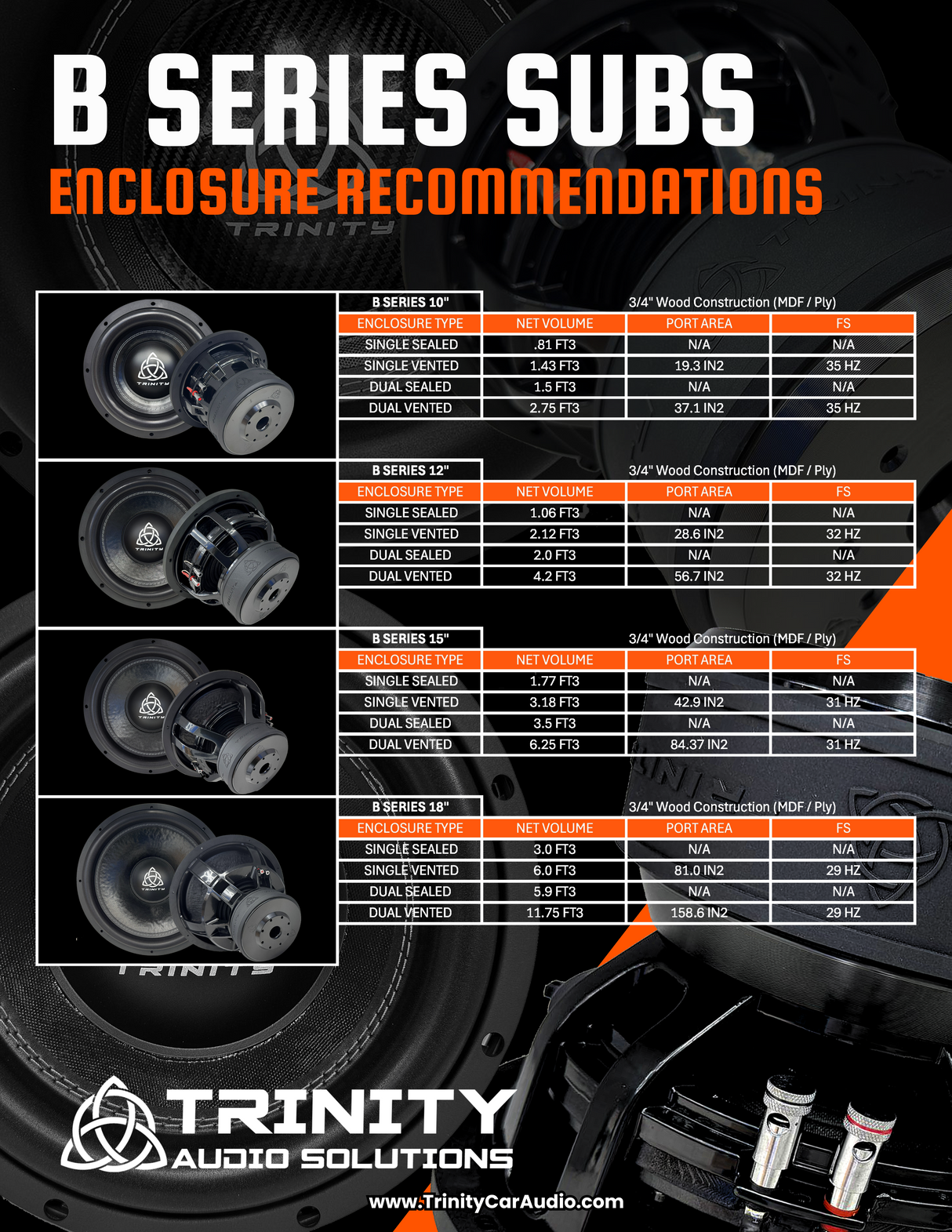

The Trinity B Series 12'' Subwoofer is versatile enough for various enclosure types, including ported, 4th order, and 6th order bandpass boxes. Trinity Audio Solutions recommends these configurations to maximize performance and achieve optimal bass response and sound quality.
Extensively tested and rigorously developed, the Trinity B Series 12'' Subwoofer meets the highest standards of durability and performance. Customers have praised its ability to withstand extreme conditions, with some users reporting successful runs at over 174 dB without damage.
To further support customers, Trinity Audio Solutions offers recone kits for the Trinity B Series 12'' Subwoofer, allowing users to maintain peak performance over time. A 1-year manufacturer warranty provides additional peace of mind, ensuring any issues are promptly addressed.
In conclusion, the Trinity B Series 12'' Subwoofer combines powerful performance, versatility, and value. Designed for the up-and-coming basshead, this subwoofer delivers dynamic sound without requiring extensive modifications or expensive equipment. With its advanced features, robust design, and exceptional value, it’s set to become a favorite among bass enthusiasts.

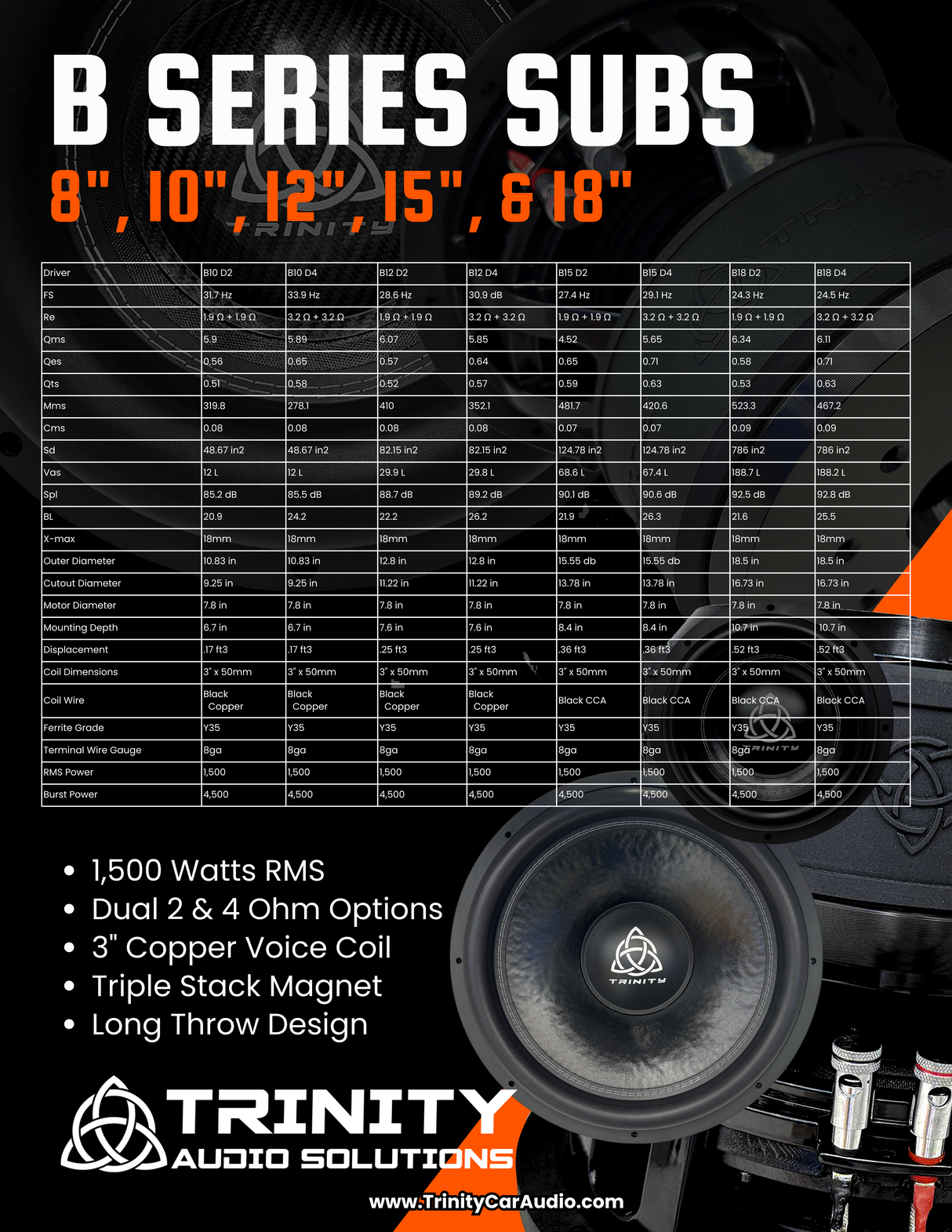

Driver | B12 D2 | B12 D4 |
FS | 28.6 Hz | 30.9 dB |
Re | 1.9 Ω + 1.9 Ω | 3.2 Ω + 3.2 Ω |
Qms | 6.07 | 5.85 |
Qes | 0.57 | 0.64 |
Qts | 0.52 | 0.57 |
Mms | 410 | 352.1 |
Cms | 0.08 | 0.08 |
Sd | 82.15 in2 | 82.15 in2 |
Vas | 29.9 L | 29.8 L |
Spl | 88.7 dB | 89.2 dB |
BL | 22.2 | 26.2 |
X-max | 18mm | 18mm |
Outer Diameter | 12.8 in | 12.8 in |
Cutout Diameter | 11.22 in | 11.22 in |
Motor Diameter | 7.8 in | 7.8 in |
Mounting Depth | 7.6 in | 7.6 in |
Displacement | .25 ft3 | .25 ft3 |
Coil Dimensions | 3" x 50mm | 3" x 50mm |
Coil Wire | Black Copper | Black Copper |
Ferrite Grade | Y35 | Y35 |
Terminal Wire Gauge | 8ga | 8ga |
RMS Power | 1,500 | 1,500 |
Burst Power | 4,500 | 4,500 |
